| Art.nr.: | NC P1.53 |

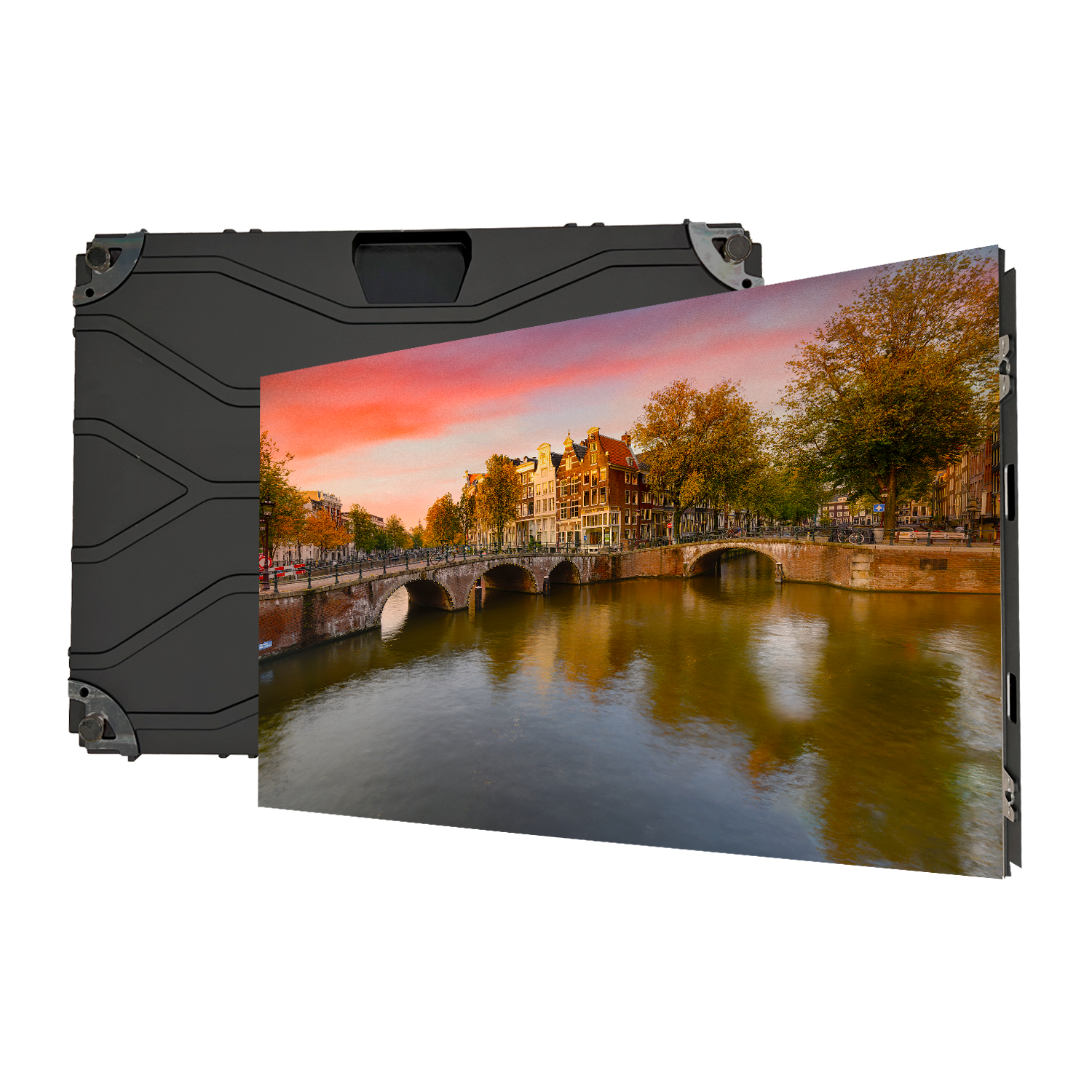

| Description | P1.53 Cabinet 640×480, 416×312 pixels, 600CD/m2, 3840Hz |
| Physical Parameter | |
| Type | Indoor |
| Pixel Pitch | 1,53 mm |
| Pixel Density | 422500 dots/m2 |
| LED Type | SMD1010 |
| Module Size | 320×160 mm |
| Module Resolution | 208×104 pixel |
| Cabinet Size | 640x480x60 mm (WXHXD) |
| Cabinet Weight | 7.5 kg/pcs |
| Optoelectronic Parameter | |
| Brightness | ≈600 cd/m2 |
| Viewing Angle | 140/140 H/V° |
| Minimum Viewing Distance | 1,53 m |
| Gray Scale | 14 bits |
| Power Consumption | 450/150 Max./Avg. W/m² |
| Work Voltage | AC100-240V |
| Refresh Rate | ≥3840 Hz |
| Brightness Adjustment | 0-100% |
| Color Temperature | 5000-9300K Adjustable |
| Application Parameter | |
| Operation System | Windows 10/11 |
| Control Distance | <100 m (Cable); ≥100 m (Optical fiber transmission) |
| Storage Temperature | -40~ +85 °C |
| Operating Temperature | -20~ +60 °C |
| Operating Humidity | 10-90% RH |
| Life Span | 100000 Hours |
| IP Rating | IP30/IP30 Front/Rear |
| Maintenance | Front |
| Installation | Fixed |
